AL-7060A-701TO
Features and Benefits

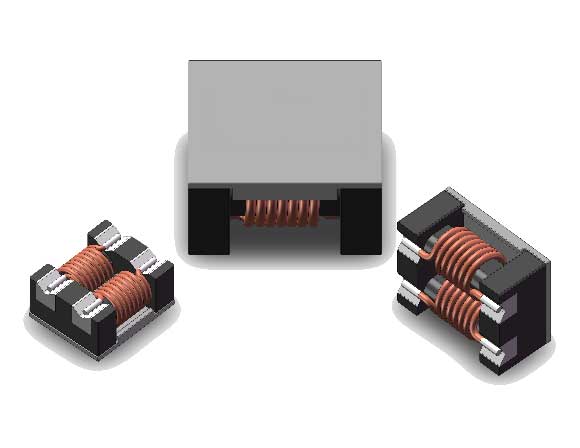

- Wire wound constructure common mode choke with best EMI suppression effect high impedance but very high rated current and low DCR
- Preventive measure against common mode noise radiation emissions from power line or else.
- Best for high current circuit such as car, wireless charging and power devicedesign.
- Dimensions L x W x H = 7.0 x 6.0 x 4.0mm
- Operating Temperature: -40℃ to +125℃
- Compatible with RoHS Directive and AEC-Q200
Applications:
- Ethernet Connector Module
- Router
- PON
- Car
| Part Number | Product Type | Application | Key Specification | Rated Current | Voltage / Isolation | DCR / Package | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| AL-7060A-701T0 | Automotive Common Mode Choke | High-current power-line filtering; 7.0 × 6.0 × 4.0 mm | 4.7 µH typ; CM 500 Ω min / 700 Ω typ @ 100 MHz | 4 A | 125 V max | 15 mΩ max | -40°C to +125°C | AEC-Q200 |  |
