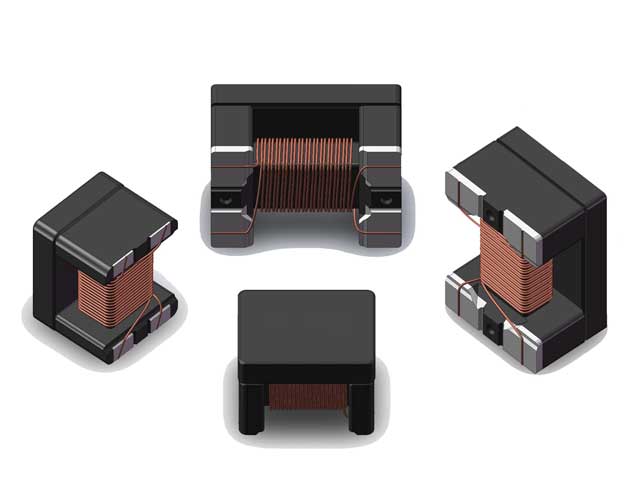

AC-3225B-101U0
Features And Benefits:
- Suppression of common mode noise without attenuating the signal
- Supports CAN-Bus, A2B and other IVN high speed differential signal lines (LVDS) for Automotive and Industrial use including PLC data lines
- Passes IEC6228-3 CLASS 3 performance and CiA 110
- High Common Mode Impedance at 10MHz
- Meets AEC-Q200 Requirement
- R&D and Factory IATF-16949 Certified
- Operating temperature -40℃ to +150℃
- Rated Voltage 80v Max
Applications:
- Ethernet Connector Module
- Router
- PON
- Car
| Part Number | Product Type | Application | Key Specification | Rated Current | Voltage / Isolation | DCR / Package | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| AC-3225B-101U0 | Automotive Common Mode Choke | Automotive signal / EMI filtering | CM 2200 Ω min / 5100 Ω typ @ 10 MHz; 100 µH | 150 mA max | 80 V max | 2.5 Ω max | -40°C to +150°C | AEC-Q200 |  |
Related Products
Related products
-
ST06A01A0 (BMS Application, AEC-Q200)
AutomotiveST06A01A0 (BMS Application, AEC-Q200)
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET ST06A01A0 BMS Isolation Transformer BMS / isoSPI daisy-chain OCL 150 µH min; Turns 1CT:1CT ±5% N/A 4300 VDC / 60 s; Working 1000 VDC SMD-6P -40°C to +125°C AEC-Q200 -
AC-4532A-220U0
AutomotiveAC-4532A-220U0
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET AC-4532A-220U0 Automotive Common Mode Choke Automotive signal / EMI filtering CM 500 Ω min / 1200 Ω typ @ 10 MHz; 22 µH 200 mA max 50 V max 0.8 Ω max -40°C to +150°C AEC-Q200 -
AC-4532A-110U0
AutomotiveAC-4532A-110U0
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET AC-4532A-110U0 Automotive Common Mode Choke Automotive signal / EMI filtering CM 300 Ω min / 600 Ω typ @ 10 MHz; 11 µH 250 mA max 50 V max 0.6 Ω max -40°C to +150°C AEC-Q200 -
AC-3225B-800U3
AutomotiveAC-3225B-800U3
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET AC-3225B-101U0 Automotive Common Mode Choke Automotive signal / EMI filtering CM 2200 Ω min / 5100 Ω typ @ 10 MHz; 100 µH 150 mA max 80 V max 2.5 Ω max -40°C to +125°C AEC-Q200 -
AC-2012A-900T0
AutomotiveAC-2012A-900T0
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET AC-2012A-900T0 Automotive Common Mode Choke Automotive signal / EMI filtering; 2012 (0805) 90 Ω typ @ 100 MHz 300 mA max 50 VDC 0.35 Ω max -40°C to +125°C AEC-Q200
