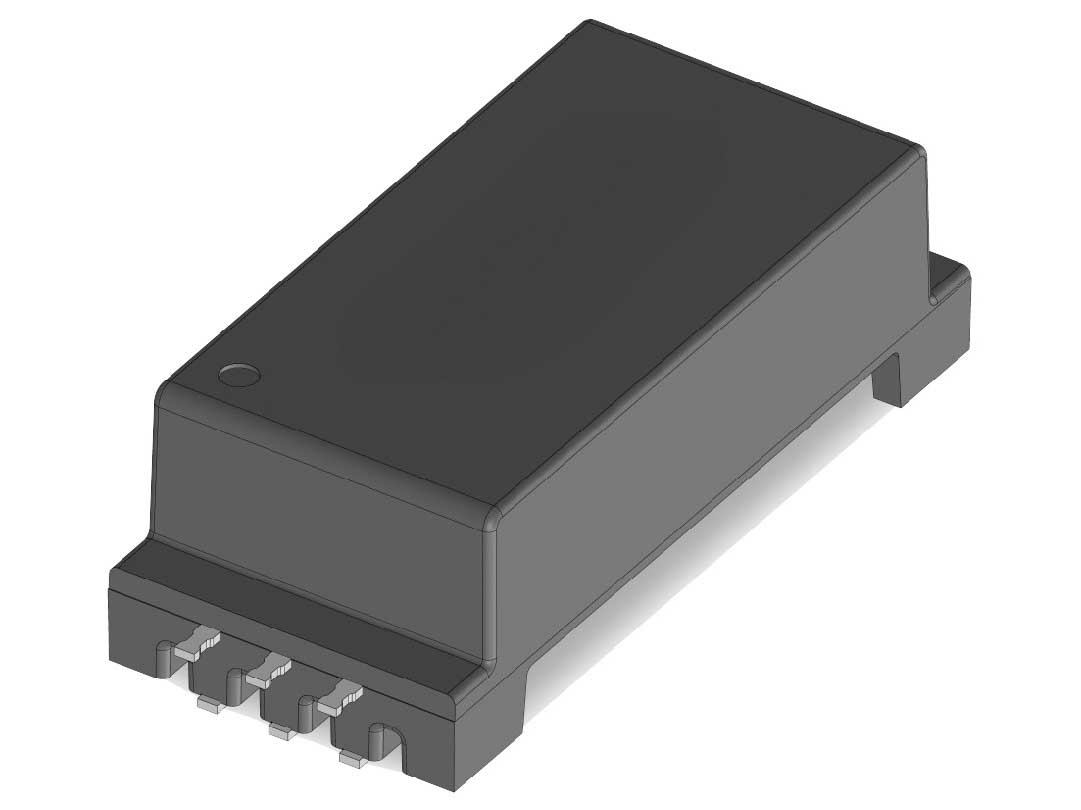

ST06202E0 (AEC-Q200)
Features And Benefits:
- Supports BMS Safety Isolation And EMI Noise Suppression
- Meets AEC-Q200 Requirements
- Multiple Options For Working Voltages And Voltage Isolation
- Functional/Basic/Reinforced Insulation Available
- Meets Class 155(F) Electrical Insulation Systems
Applications:
- Electric Vehicle
- Energy Storage Systems
- Data Center UPS
- Solar Energy Storage
- Green – Renewable
- Marine
Techinical Specifications
- OCL(TD & RD): 150uH Min. @ 100 KHz, 0.1V(-40℃ ~ +125℃)
- Leakage Inductance(TD & RD,TX & RX shorted): 0.6uH Max @ 100KHz, 0.1V
- DCR:Transformer side: 500mΩ Max
-
-
- CM choke side: 600mΩ Max
-
-
- Turns Ratio: 1CT:1CT±2%
- Insertion Loss: -1.0 dB Max @ 4 MHz
- Return Loss: -20 dB Min @ 4 MHz
- Common Mode Rejection: -30 dB Min @ 1-100 MHz
- Isolation Hipot: 6400VDC 1mA 60S or 5000VAC 1mA 60s
- Reinforced Insulation At a Working Voltage Of 1500VDC And The Creepage Distance Of 15mm Min And The clearance distance Of 14mm Min
- Operating Temperature: -40℃ to +125℃
- Storage Temperature(With Package): +10℃ to +40℃
- Storage Temperature(Without Package, Just For Components): -40℃ to +125℃
- RoHS Compliant
| Part Number | Product Type | Application | Key Specification | Rated Current | Voltage / Isolation | DCR / Package | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| ST06202E0 | Automotive Isolation Transformer | Automotive isolated communication | OCL 150 µH min; Turns 1CT:1CT ±2% | N/A | 6400 VDC or 5000 VAC / 60 s; Working 1500 VDC | Reinforced insulation | -40°C to +125°C | AEC-Q200 |  |
