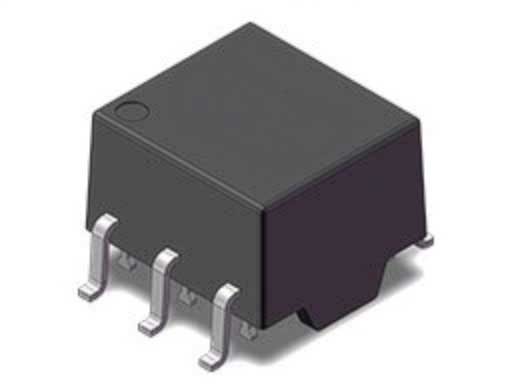

ST06A01A0 (BMS Application, AEC-Q200)

Features And Benefits:

  • Supports BMS Safety Isolation And EMI Noise Suppression
  • Meets AEC-Q200 Requirements
  • Multiple Options For Working Voltages And Voltage Isolation
  • Functional/Basic/Reinforced Insulation Available
  • Meets Class 155(F) Electrical Insulation Systems

Applications:

  • Electric Vehicle
  • Energy Storage Systems
  • Data Center UPS
  • Solar Energy Storage
  • Green – Renewable
  • Marine

Technical Information:

  • OCL: 150 uH Min @ 100 KHz, 0.1V
  • Leakage Inductance: 0.5uH Max @ 100KHz, 0.1V
  • DCR: (1 to 3) 450mΩ Max
      • (6 to 4) 850mΩ Max
  • Turns Ratio: 1CT:1CT±5%
  • Insertion Loss: -0.5 dB Max @ 4 MHz
  • Return Loss: -20 dB Min @ 4 MHz
  • Common Mode Rejection: -35 dB Min @ 1-100 MHz
  • Isolation Hipot: 4300VDC 1mA 60s
  • Moisture Sensitivity Level-1
  • ESD Classification (HBM): N/A
  • Functional insulation, Working Voltage:1000 VDC
  • Qualification：Meet AEC-Q200
  • Operating temperature -40℃ to +125℃
  • Storage Temperature(With Package): +10℃ to +40℃
  • Storage Temperature(Without Package, Just For Components): -40℃ to +125℃
  • RoHS Compliant
  • Qualification：Meet AEC-Q200
Categories , ,
st06a01a0

Datasheet PDF:

Click here
Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET
ST06A01A0 BMS Isolation Transformer BMS / isoSPI daisy-chain OCL 150 µH min; Turns 1CT:1CT ±5% N/A 4300 VDC / 60 s; Working 1000 VDC SMD-6P -40°C to +125°C AEC-Q200 acrobat
