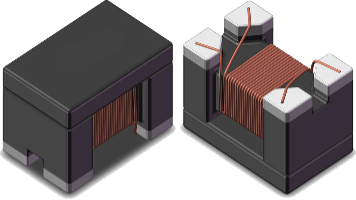

AC-4532A-110U0
Features and Benefits
- Suppression of common mode noise without attenuating the signal
- Supports CAN-Bus, A2B and other IVN high speed differential signal lines (LVDS) for Automotive and Industrial use including PLC data lines
- Passes IEC6228-3 CLASS 3 performance and CiA 110
- High Common Mode Impedance at 10MHz
- Meets AEC-Q200 Requirement
- R&D and Factory IATF-16949 Certified
- Operating temperature -40℃ to +150℃
- Rated Voltage 50v Max
Applications:
- Ethernet Connector Module
- Router
- PON
- Car
| Part Number | Product Type | Application | Key Specification | Rated Current | Voltage / Isolation | DCR / Package | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| AC-4532A-110U0 | Automotive Common Mode Choke | Automotive signal / EMI filtering | CM 300 Ω min / 600 Ω typ @ 10 MHz; 11 µH | 250 mA max | 50 V max | 0.6 Ω max | -40°C to +150°C | AEC-Q200 |  |
