Product Catalogue

Showing 37–45 of 45 results

12/24/48/All

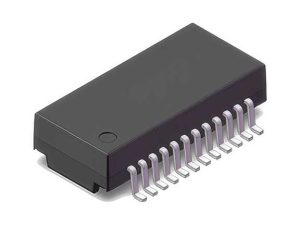

  • sm24 lan

    SQ24002N0

     Lan Transformers
    sm24 lan
    Read more

    SQ24002N0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    SQ24002N0 2.5/5G BASE-T 2.5G / 5G BASE-T 200uH Min @ 100KHz 0.1V 1CT:1CT±5% N/A 0°C to +70°C acrobat
    Categories: ,
  • sm24 lan

    SQ24301N0

     Lan Transformers
    sm24 lan
    Read more

    SQ24301N0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    SQ24002N0 2.5/5G BASE-T 2.5G / 5G BASE-T 180uH Min @ 100KHz, 0.1V 1CT:1CT±5% N/A 0°C to +70°C acrobat
    Categories: ,
  • sm24 lan

    SQ24303NO

     Lan Transformers
    sm24 lan
    Read more

    SQ24303NO
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    SQ24002N0 2.5/5G BASE-T 2.5G / 5G BASE-T 180uH Min @ 100KHz, 0.1V 1CT:1CT±5% N/A 0°C to +70°C acrobat
    Categories: ,

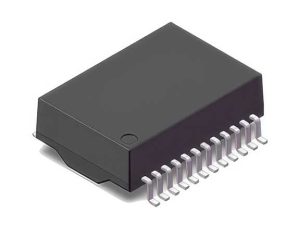

  • sq247 lan

    SQ24701N0

     Lan Transformers
    sq247 lan
    Read more

    SQ24701N0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    SQ24701N0 2.5/5G BASE-T 2.5G / 5G BASE-T 200uH Min @ 100KHz 0.1V 1CT:1CT±5% N/A 0°C to +70°C acrobat
    Categories: ,
  • st0600

    ST06002G0

     Gate Drive Transformers
    st0600
    Read more

    ST06002G0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    ST06002G0 Gate-Drive Transformer Gate-drive isolation (Pin 1-3): 340uH Min @ 100 KHz, 0.1V @25°C (Pin 1-3):(Pin 6-4)=1CT:2CT±5% N/A -40°C to +125°C AEC-Q200 acrobat
    Categories: ,

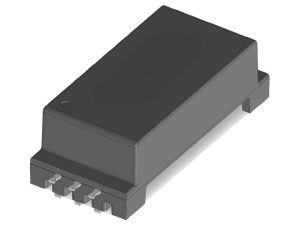

  • st06202e0

    ST06202E0 (AEC-Q200)

     Automotive
    st06202e0
    Read more

    ST06202E0 (AEC-Q200)
    Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET
    ST06202E0 Automotive Isolation Transformer Automotive isolated communication OCL 150 µH min; Turns 1CT:1CT ±2% N/A 6400 VDC or 5000 VAC / 60 s; Working 1500 VDC Reinforced insulation -40°C to +125°C AEC-Q200 acrobat
    Categories: , ,

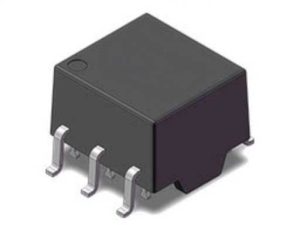

  • st06a01a0

    ST06A01A0 (BMS Application, AEC-Q200)

     Automotive
    st06a01a0
    Read more

    ST06A01A0 (BMS Application, AEC-Q200)
    Part Number Product Type Application Key Specification Rated Current Voltage / Isolation DCR / Package Operating Temp. Qualification DATASHEET
    ST06A01A0 BMS Isolation Transformer BMS / isoSPI daisy-chain OCL 150 µH min; Turns 1CT:1CT ±5% N/A 4300 VDC / 60 s; Working 1000 VDC SMD-6P -40°C to +125°C AEC-Q200 acrobat
    Categories: , ,
  • st06e

    ST06E12D0

     Isolation / General Transformers
    st06e
    Read more

    ST06E12D0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    ST06E12D0 Isolation / General Transformer Isolation / General Purpose (TD): 475uH Min with 100 kHz, 0.1V@25°C (1-3):(6-4)= 1CT:1.3CT±5% N/A -40°C to +125°C acrobat
    Categories: ,
  • trans group

    ST12E01E0

     Lan Transformers
    trans group
    Read more

    ST12E01E0
    Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
    ST12E01E0 Communication Transformer 10 BASE-TX / ESS-Communication (TD & RD): 400uH Typ. @ 100 KHz, 0.1V, 25°C (Pri to Sec): 1CT:1CT±2% N/A -40°C to +125°C acrobat
    Categories: ,
