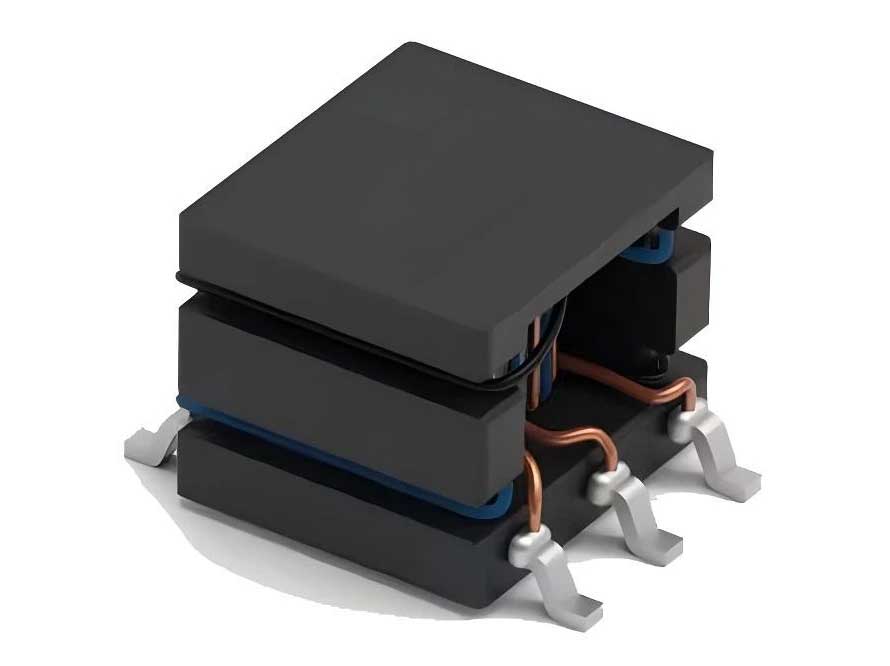

ST06002G0
Features And Benefits:
- Small Size and Low Profile
- Surface Mount
- Functional or Reinforced Insulation
- High Isolation Up to 6kV Creepage Distance Up to 15mm
- Operating Temp:-40°C to 125°C
Applications:
- Isolated Interface PS For CAN
- Industrial Automation
- PLC Analog & Digital 1/O Module·
- AC Motor Drive & UPS
- Isolated Gate Driver Power Supplies
ELECTRICAL SPECIFICATIONS @25℃
Unless Otherwise Specified, Testing is Performed at 25℃ ± 5℃
- OCL( Pin1-3): 340uH Min @ 100 KHz, 0.1V @25℃
- Leakage Inductance: 1.0uH Max @ 100KHz, 0.1V
- DCR(Pin1-3): 750mΩ Max
- DCR(Pin6-4): 1300mΩ Max
- CW/W: 20 pF Max @ 100 KHz, 0.1V
- Turns Ratio: (Pin1-3):(Pin6-4)=1CT:2CT±5%
- Isolation Hipot: 4000Vrms
- Operating temperature -40℃ to +125℃
- Storage temperature -40℃ to +125℃
- Reinforced insulation，8mm minimum creepage & clearance distance between PRI&SEC
- Meet AEC-Q200
| Part Number | Product Type | Network Standard / Application | OCL / Inductance | Turns Ratio | PoE | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|
| ST06002G0 | Gate-Drive Transformer | Gate-drive isolation | (Pin 1-3): 340uH Min @ 100 KHz, 0.1V @25°C | (Pin 1-3):(Pin 6-4)=1CT:2CT±5% | N/A | -40°C to +125°C | AEC-Q200 |  |
