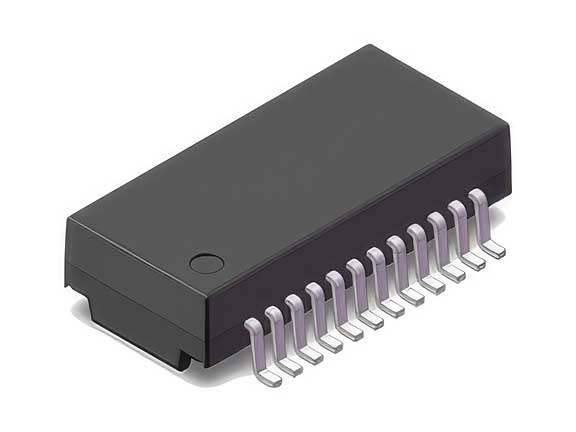

SG24002T0
Features And Benefits:
- IEEE 802.3 Compliant To 25G
- High Isolation Up To 6kV
- Single, Dual, Quad, Five Packages
- SMT & DIP Options
- Extended Temperature -40°C To +85°C
- 2P/4P PoE/PoE+/PoE++ Capable Up To 200W Max
Applications:
- Switch/Router
- Server/Gateway
- Access Point
- Base Station
- HDBaseT/G.Fast
ELECTRICAL SPECIFICATIONS @25℃
Unless Otherwise Specified, Testing is Performed at 25℃ ± 5℃
- OCL: 350uH Min @ 100KHz, 0.1V 8mA DC BIAS
- Leakage Inductance: 0.5uH Max @ 100KHz, 0.1V
- DCR: 1400mΩ Max
- Turns Ratio: 1CT:1CT±5%
- Insertion Loss: ‐1.1 dB Max @ 1‐100 MHz
- Return Loss: ‐18 dB Min @ 1‐30 MHz
-
-
- ‐14.4 dB Min @40 MHz
- ‐13.1 dB Min @ 50 MHz
- ‐12 dB Min @ 60‐80 MHz
- ‐10 dB Min @ 100 MHz
-
-
- Cross Talk: ‐30 dB Min @ 1‐100 MHz
- Common Mode Rejection: ‐30 dB Min @ 1‐100 MHz
- Isolation Hipot: 1500VAC 1mA 60S
- Operating temperature ‐40°C to +85°C
- Storage temperature ‐40°C to +85°C
| Part Number | Product Type | Network Standard / Application | OCL / Inductance | Turns Ratio | PoE | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|
| SG24002T0 | 100/1000 BASE-T | 100/1000BASE-T | 350uH Min @ 100KHz, 0.1V 8mA DC BIAS | 1CT:1CT±5% | N/A | Not stated |  |
