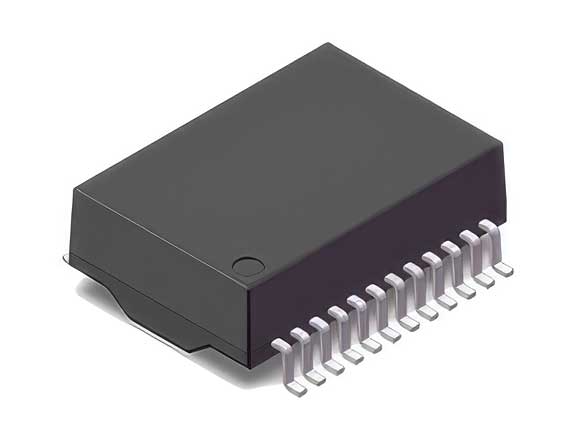

SG24701F0
Features And Benefits:
- IEEE 802.3 Compliant To 25G
- High Isolation Up To 6kV
- Single, Dual, Quad, Five Packages
- SMT & DIP Options
- Extended Temperature -40°C To +85°C
- 2P/4P PoE/PoE+/PoE++ Capable Up To 200W Max
Applications:
- Switch/Router
- Server/Gateway
- Access Point
- Base Station
- HDBaseT/G.Fast
ELECTRICAL SPECIFICATIONS @25℃
Unless Otherwise Specified, Testing is Performed at 25℃ ± 5℃
- OCL: 350uH Min @ 100 KHz, 0.1V 8mA DC BIAS
- Leakage Inductance: 0.5uH Max @ 100KHz, 0.1V
- DCR: 1400mΩ Max
- Turns Ratio: 1CT:1CT±5%
- Insertion Loss: -1.2 dB Max @ 0.5-1 MHz
-
-
- -0.2-0.002*f^1.4 dB Max @ 1-125 MHz
-
-
- Return Loss: -16 dB Min @ 1-40 MHz
-
-
- -10+20*log（f/80） dB Min @ 40.1-100 MHz
-
-
- Cross Talk: -30 dB Min @ 1-100 MHz
- Common Mode Rejection: -30 dB Min @ 1-100 MHz
- Isolation Hipot: 3000VAC 1mA 2S
- Operating temperature -40℃ to +85℃(Include The Temperature Rise)
- Storage temperature -40℃ to +85℃
- IEEE802.3at compliant performance—720mA Current Capability
| Part Number | Product Type | Network Standard / Application | OCL / Inductance | Turns Ratio | PoE | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|---|
| SG24701F0 | 100/1000 BASE-T | 100/1000BASE-T | 350uH Min @ 100KHz, 0.1V 8mA DC BIAS | 1CT:1CT±5% | PoE 30W / 720 mA | -40°C to +85°C |  |
