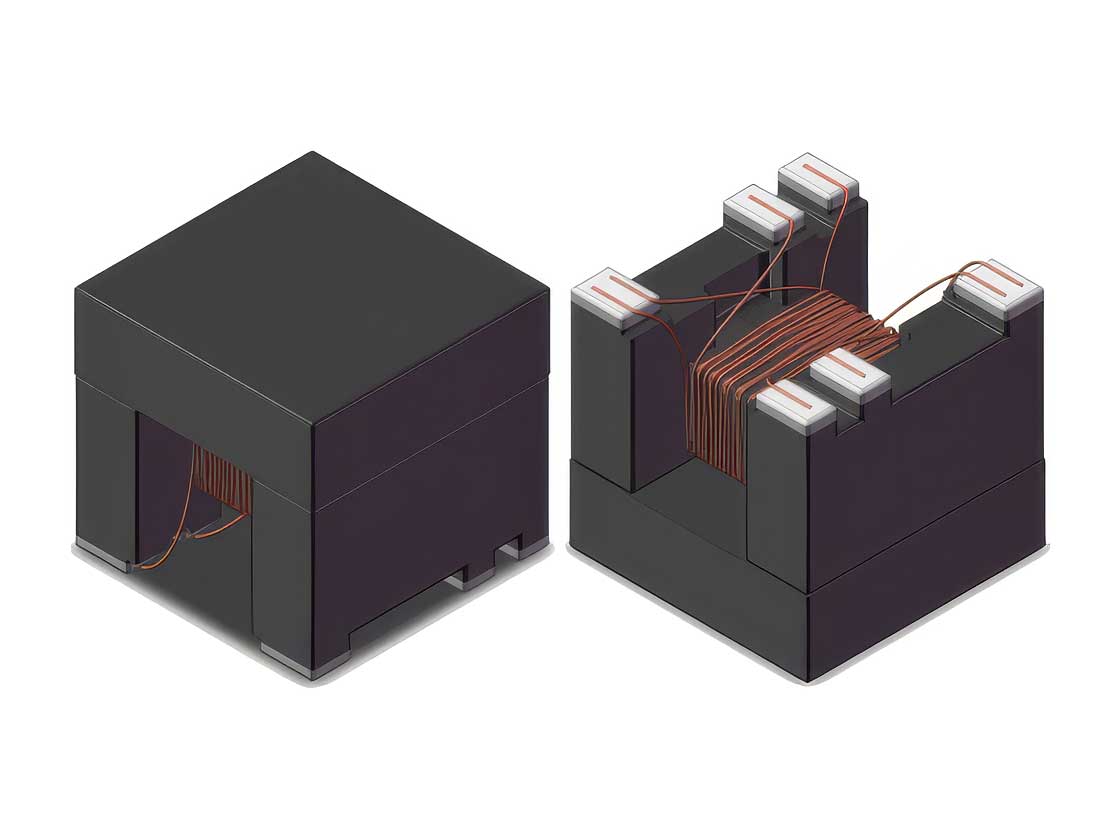

LT-3532A-151MQN

Features and Benefits

  • LAN interfaces of various devices including network devices, communication equipment, digital consumer electronics, etc
  • Compliant With Ethernet 2.5G/5GBase-T
  • Improved Return Loss And Cross Talk Properties
  • High-Quality Product That Uses Auto Winding
  • Operating temperature -40℃ to +85℃
  • 1500Vrms/1mA/60s Hi-pot Support
  • Super Small Size – available in 3532 Size
  • RoHS Compliant

Applications:

  • Ethernet Connector Module
  • Router
  • PON
Categories ,
lt 35

Datasheet PDF:

Click here
Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
LT-3532A-151MQN Pulse Transformer 2.5G / 5G BASE-T 150 µH min @ 100 kHz, 0.1 V, 8 mA Non-PoE -40°C to +85°C acrobat
