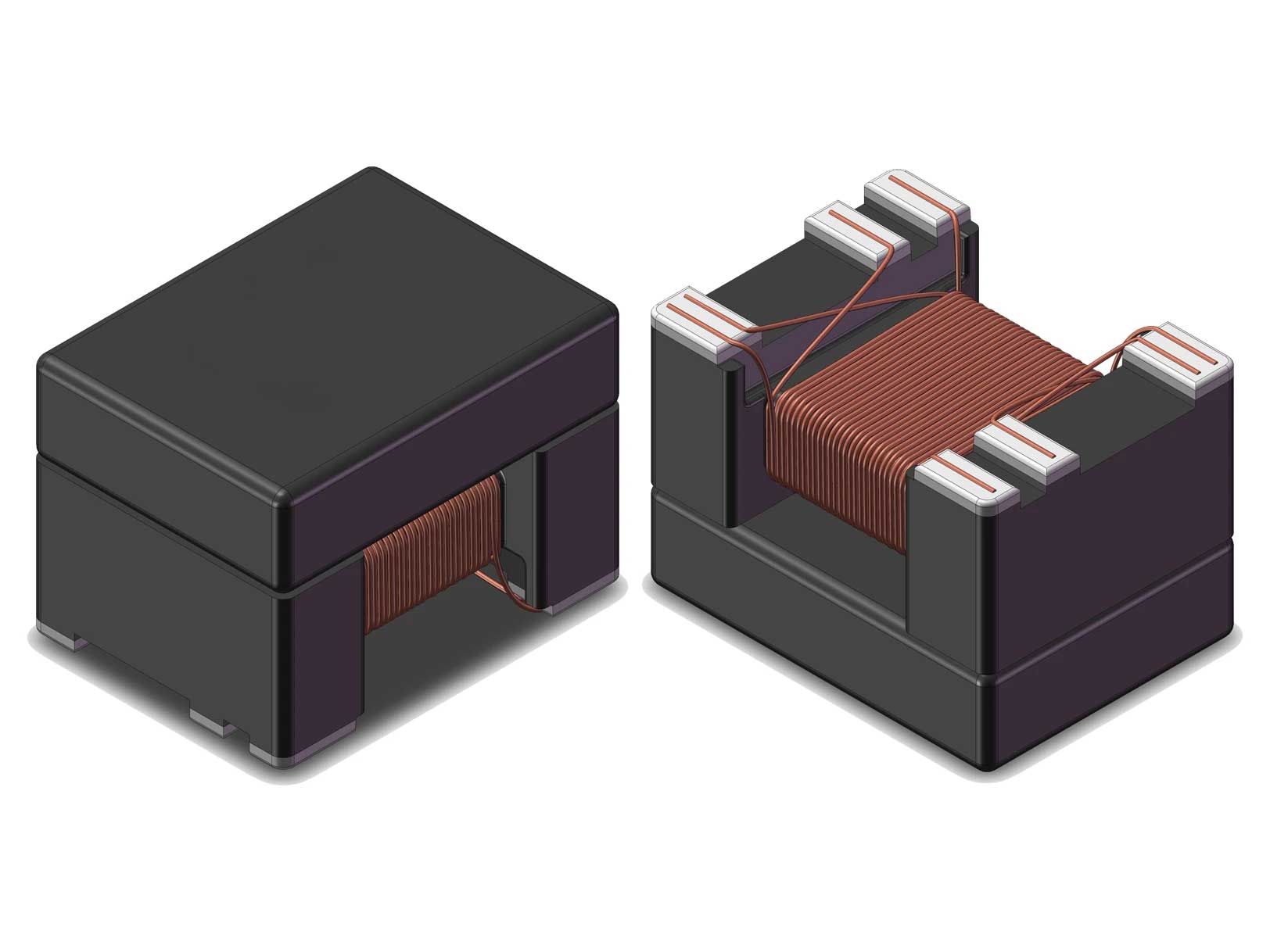

LT-4532B-201MQN

Features and Benefits

  • LAN interfaces of various devices including network devices, communication equipment, digital consumer electronics, etc
  • Compliant With Ethernet 1/2.5/5/10GBase-T
  • Improved Return Loss And Cross Talk Properties
  • NON-POE、IEEE802.3af(15W)、IEEE802.3at(30W) available
  • High-Quality Product That Uses Auto Winding
  • Operating temperature -40℃ to +105℃
  • 1200Vrms/1mA/60s Hi-pot Support
  • Super Small Size – available in 4532 Size
  • RoHS Compliant

Applications:

  • Ethernet Connector Module
  • Router
  • PON
Categories ,
lt 45

Datasheet PDF:

Click here
Part Number Product Type Network Standard / Application OCL / Inductance Turns Ratio PoE Operating Temp. Qualification DATASHEET
LT-4532B-201MQN Pulse Transformer 2.5G / 5G BASE-T 200 µH min @ 100 kHz, 0.1 V, 8 mA Non-PoE -40°C to +85°C acrobat
