LC-3216A-600MO
Features and benefits:
- High common mode impedance at high frequency effects excellent noise suppression performance
- 20uH~60uH are optional for different noise level and signal frequency
- Suppression of Common Mode Noise Without Attenuating The Signal
- High-Quality Product That Uses Auto Winding
- Operating temperature -40℃ to +105℃
- Available in 3216(1206) Size
- RoHS Compliant
Applications:
- Ethernet Connector Module
- Router
- PON
| Part Number | Key Parameter | Rated Current | Rated Voltage | DCR | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|
| LC-3216A-600M0 | 60 µH min @ 100 kHz, 0.1 V | 200 mA max | 50 VDC | 1.70 Ω max | -40°C to +105°C | RoHS |  |
Related Products
Related products
-
LC-2012A-750C
Chip LAN ChokesLC-2012A-750C
Part Number Key Parameter Rated Current Rated Voltage DCR Operating Temp. Qualification DATASHEET LC-2012A-750C 75 Ω typ characteristic impedance 280 mA max 50 VDC 0.55 Ω max -40°C to +105°C RoHS -
LC-3216A-550M0
Common Mode ChokesLC-3216A-550M0
Part Number Key Parameter Rated Current Rated Voltage DCR Operating Temp. Qualification DATASHEET LC-3216A-550M0 55 µH min @ 100 kHz, 0.1 V 200 mA max 50 VDC 1.50 Ω max -40°C to +105°C RoHS -
LC-2012A-801T0
Common Mode ChokesLC-2012A-801T0
Part Number Key Parameter Rated Current Rated Voltage DCR Operating Temp. Qualification DATASHEET LC-2012A-801T0 800 Ω typ @ 100 MHz 300 mA max 50 VDC 0.88 Ω max -40°C to +105°C RoHS -

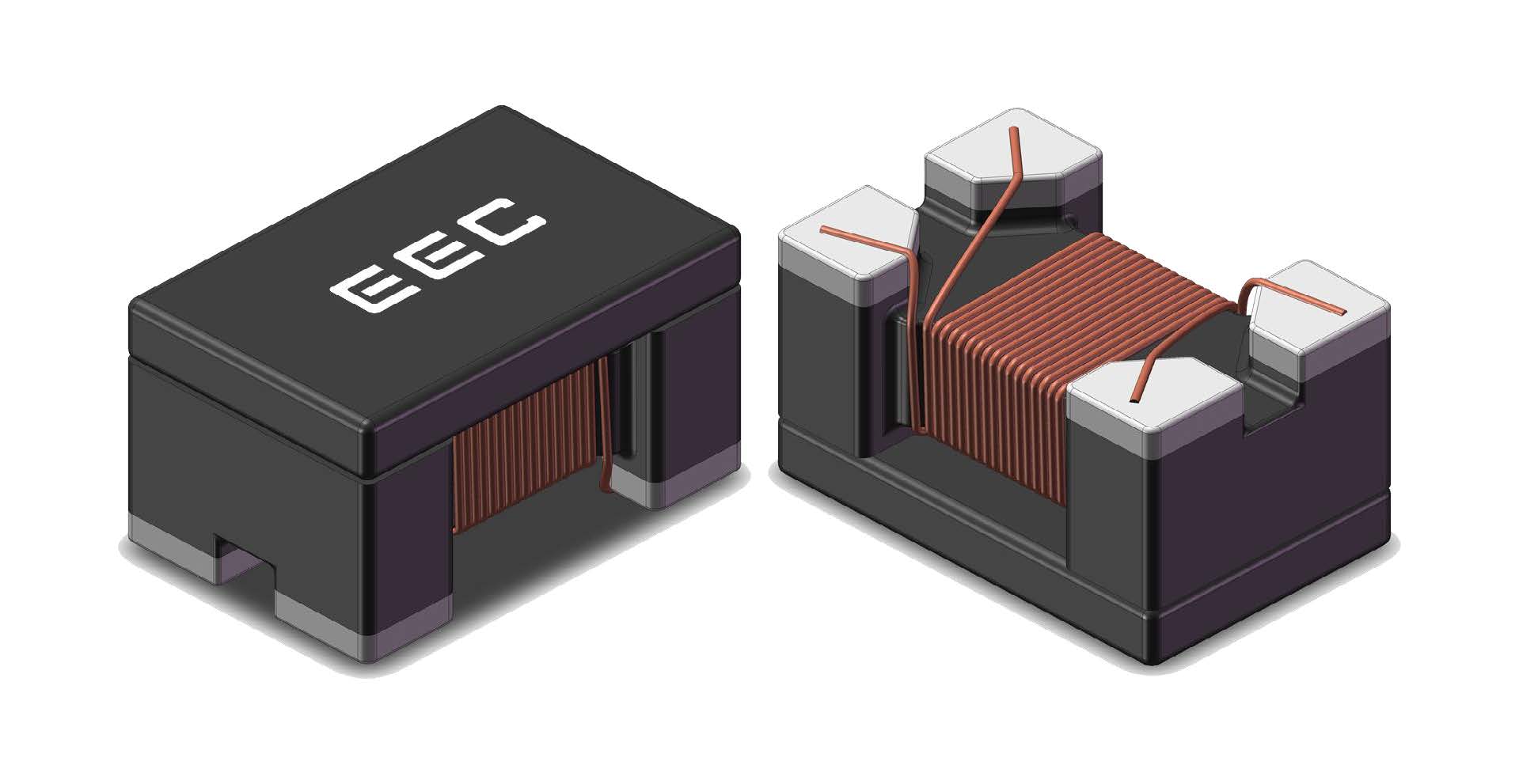

LC-2012A-361T1
