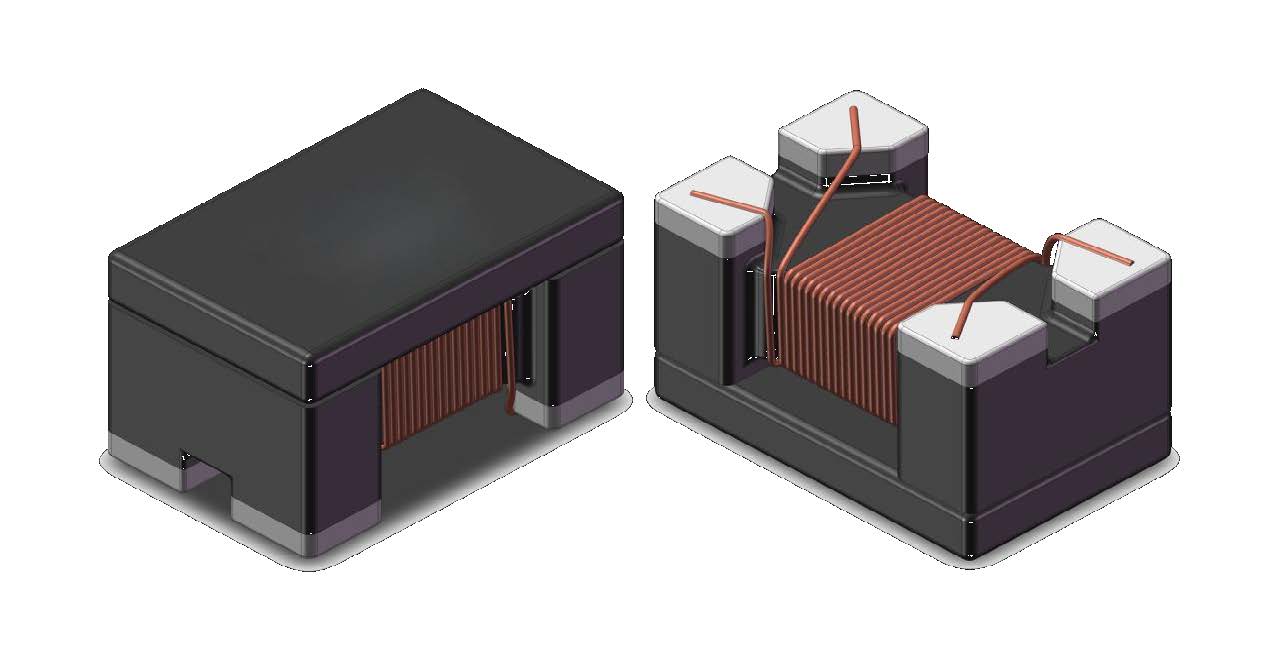

LC-2012A-750C
Features and benefits:
- High common mode impedance at high frequency effects excellent noise suppression performance
- Suppression of Common Mode Noise Without Attenuating The Signal
- High-Quality Product That Uses Auto Winding
- Operating temperature -40℃ to +105℃
- Available in 2012(0805) Size
- RoHS Compliant
Applications:
- Ethernet Connector Module
- Router
- PON
| Part Number | Key Parameter | Rated Current | Rated Voltage | DCR | Operating Temp. | Qualification | DATASHEET |
|---|---|---|---|---|---|---|---|
| LC-2012A-750C | 75 Ω typ characteristic impedance | 280 mA max | 50 VDC | 0.55 Ω max | -40°C to +105°C | RoHS |  |
